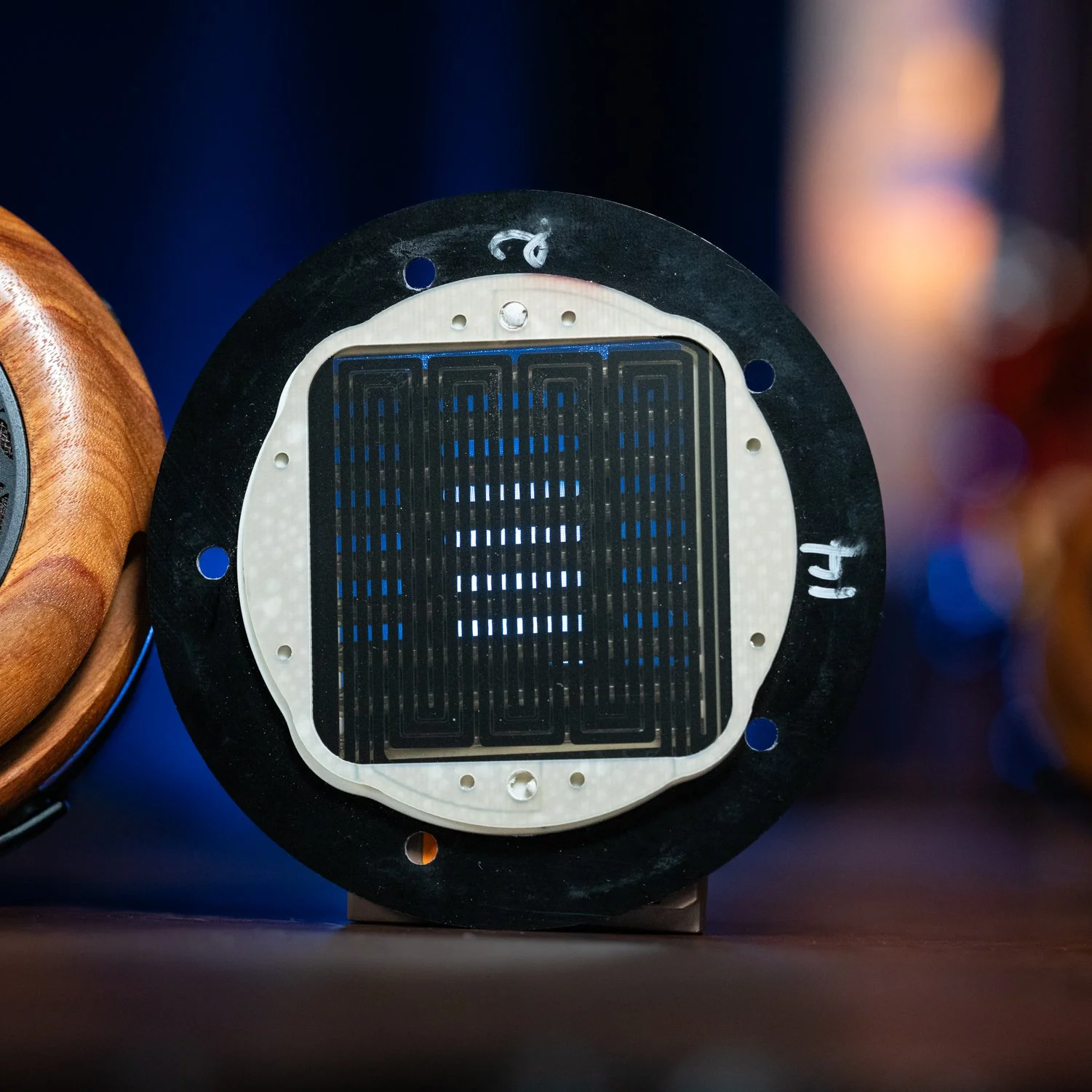

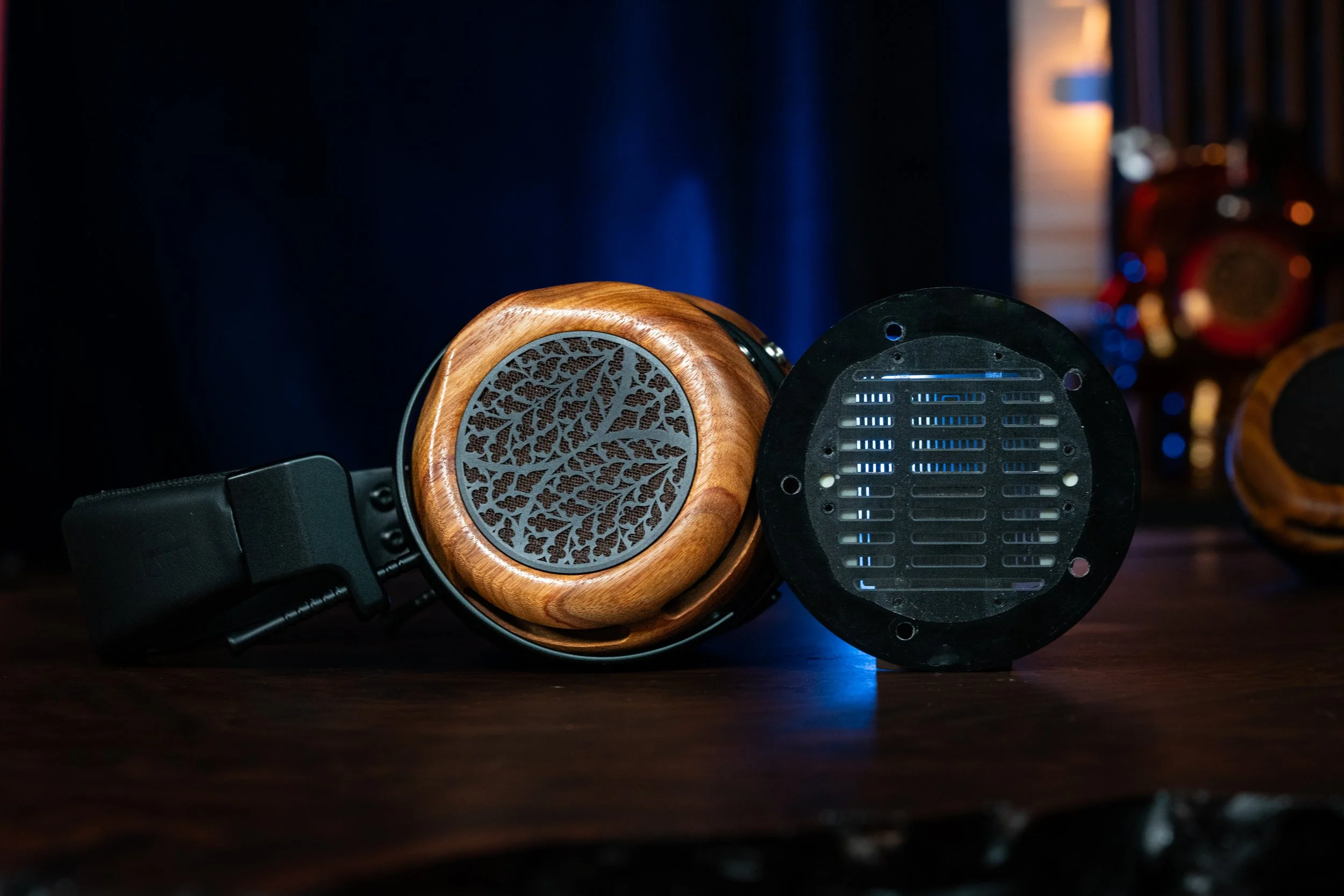

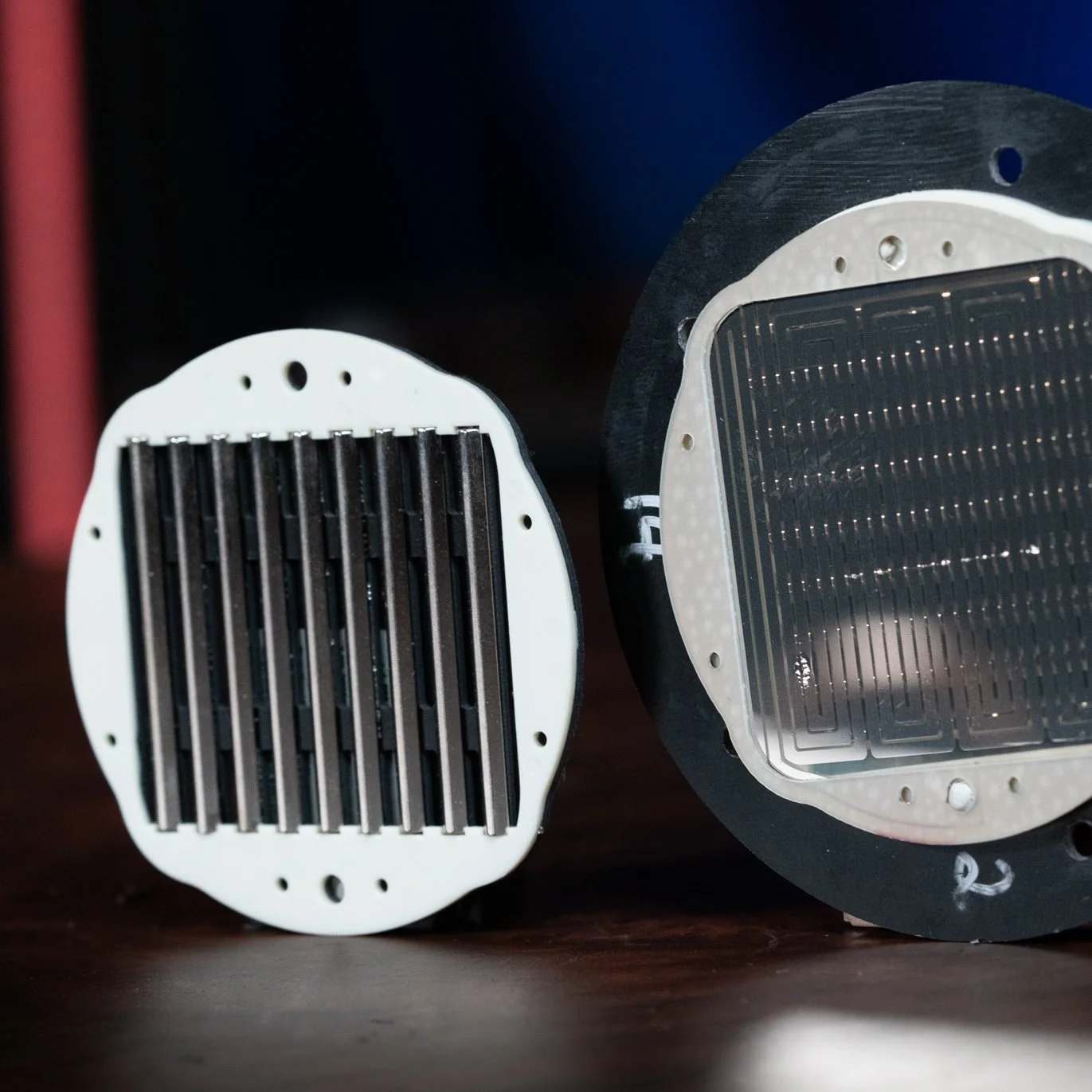

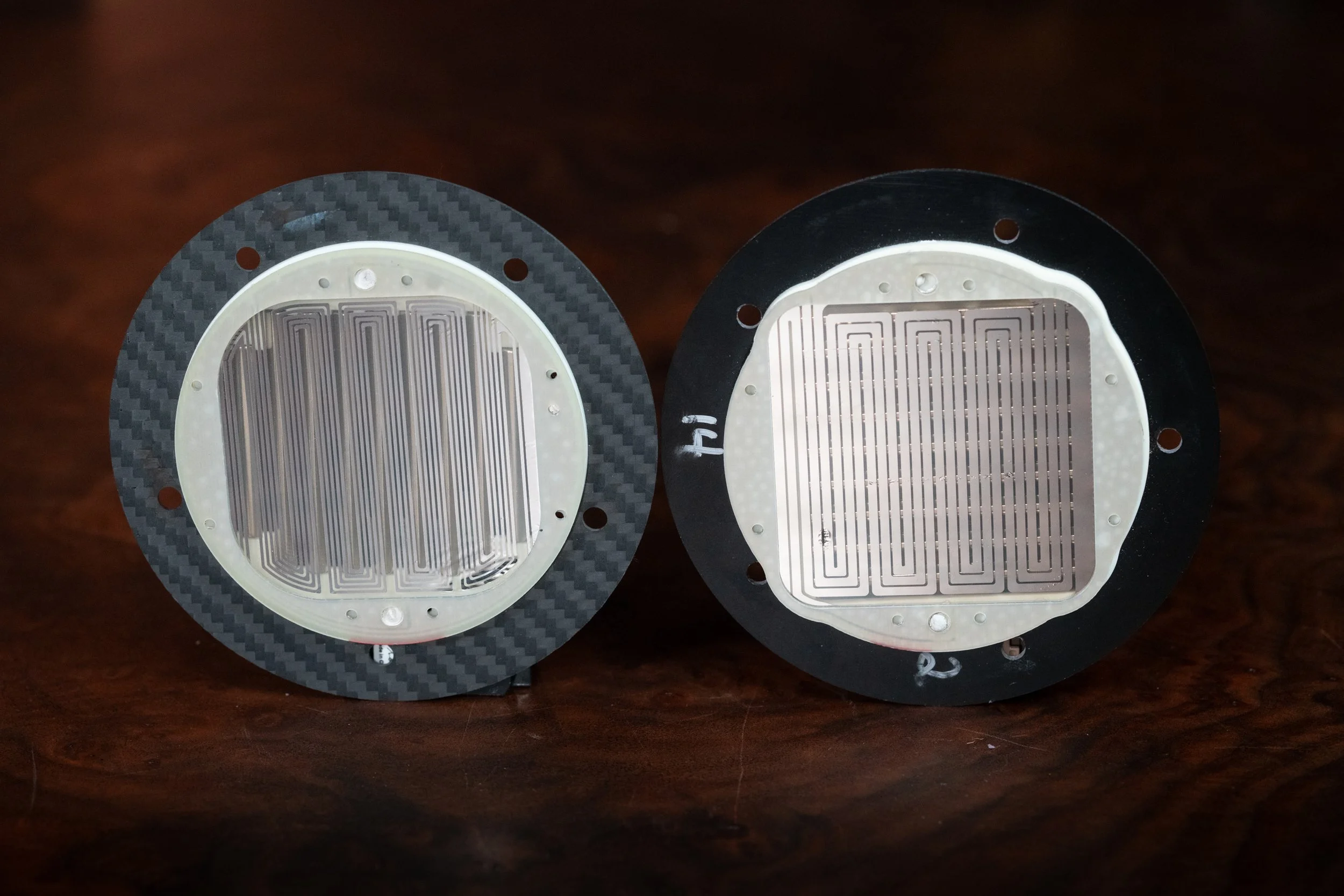

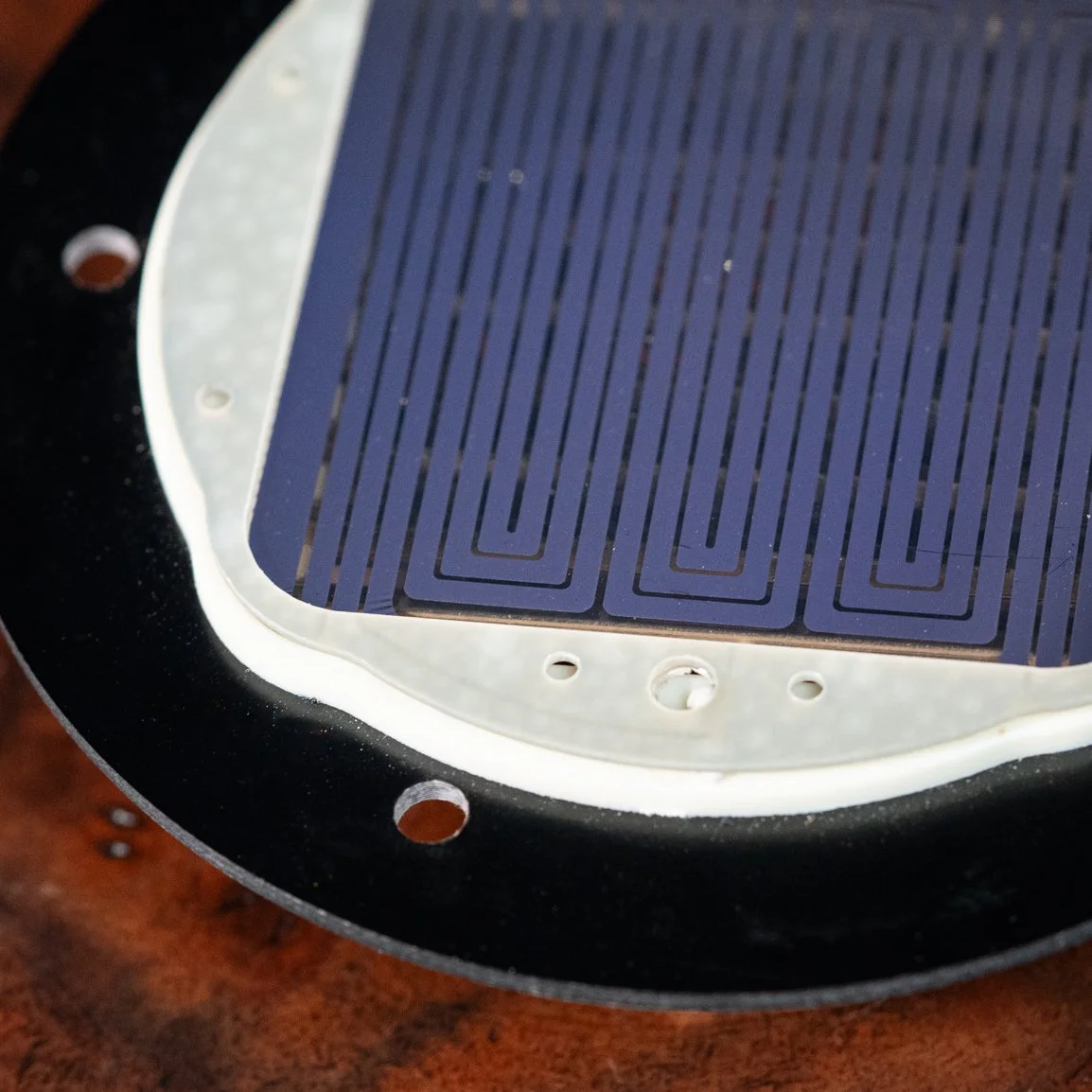

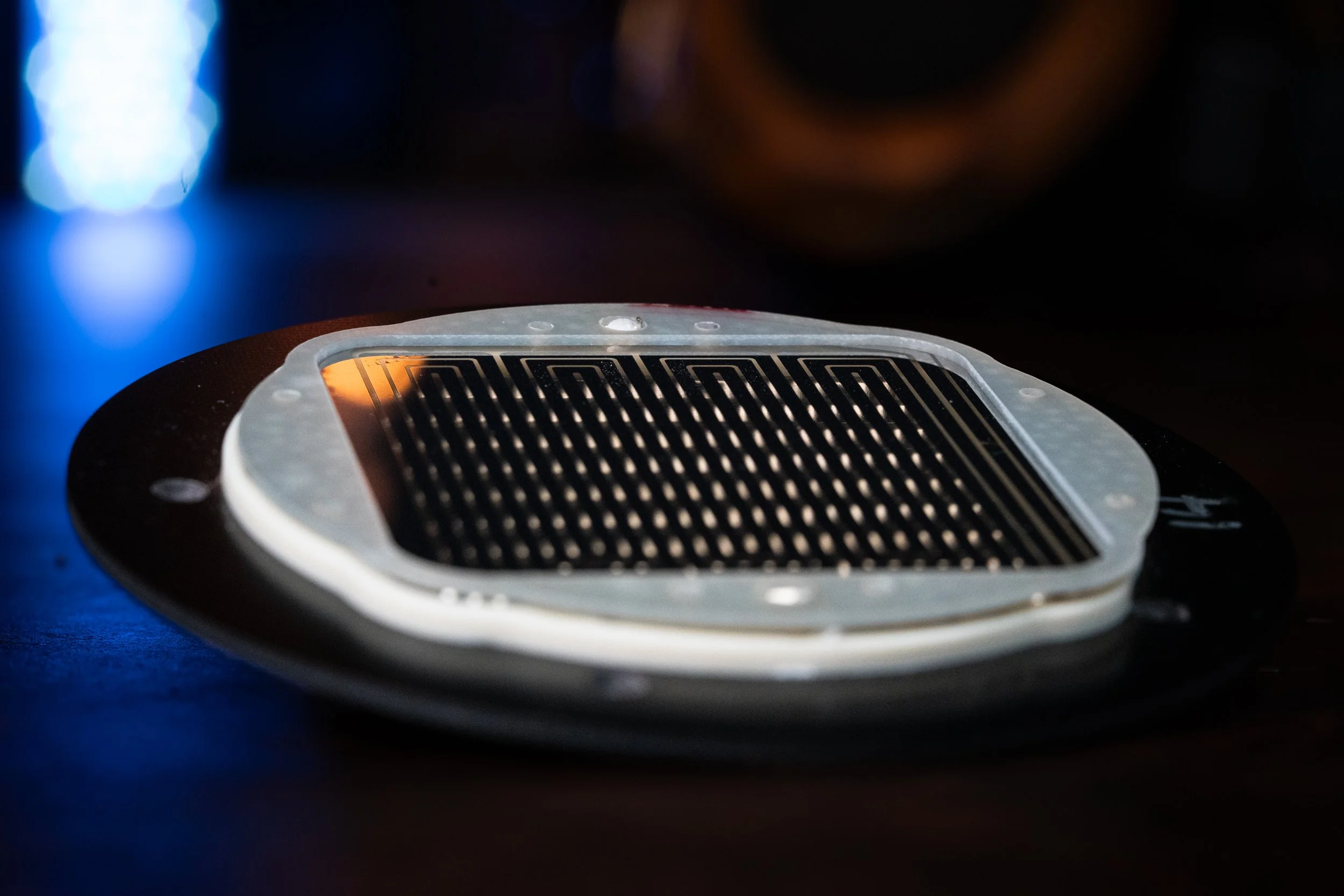

CAMS (Caldera Asymmetrical Magnet Structure): The foundation of ZMF's planar technology, CAMS uses dual-sided trapezoidal N52 neodymium magnets to create even magnetic tension across the diaphragm while pushing air toward the ear with controlled diffusion.on text goes here

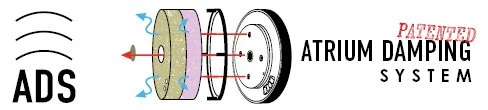

ADS (Atrium Damping System): ZMF's patent-pending rear damping architecture controls pressure and airflow behind the driver, minimizing back-wave cancellation while enhancing perceived depth through strategic diffusion and driver placement.

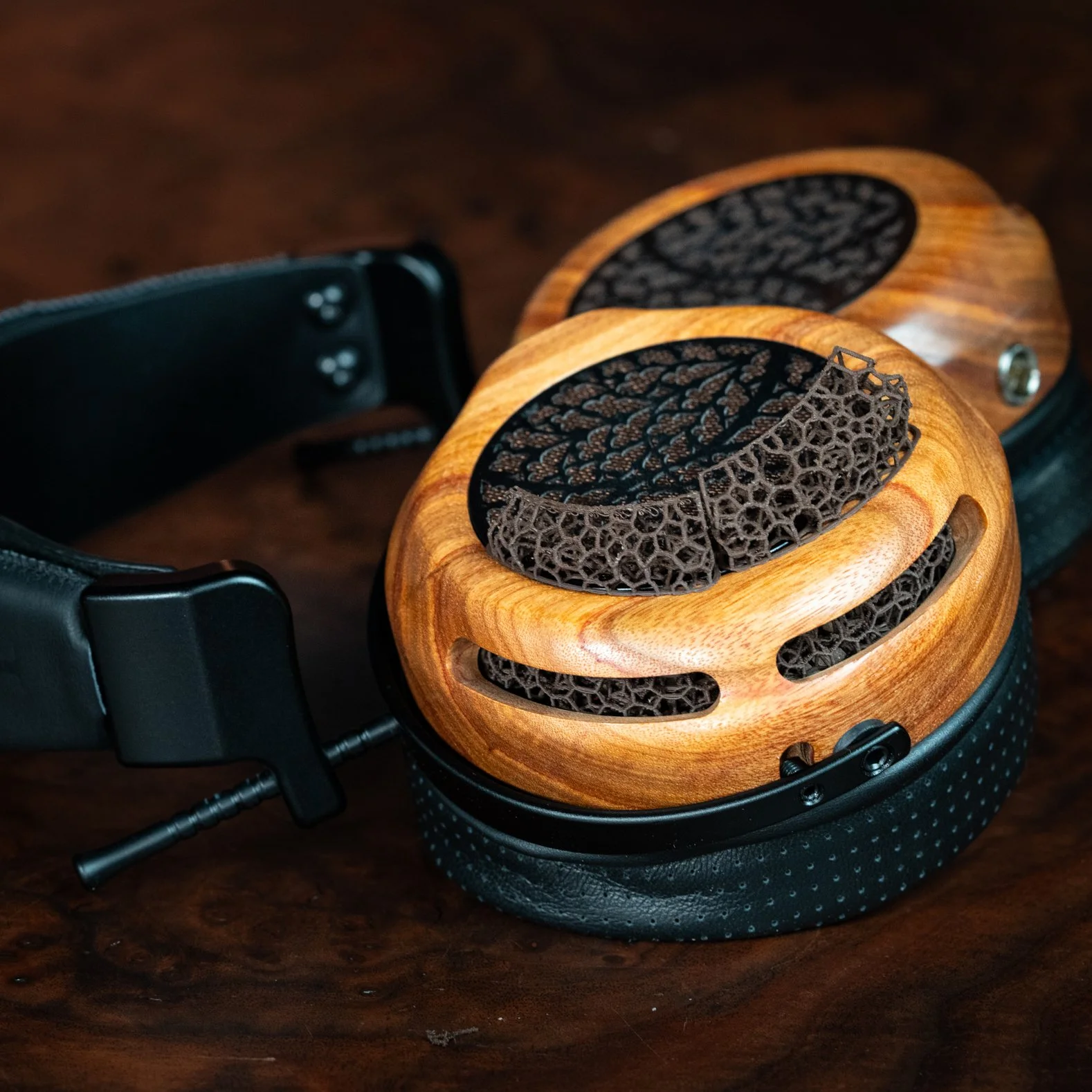

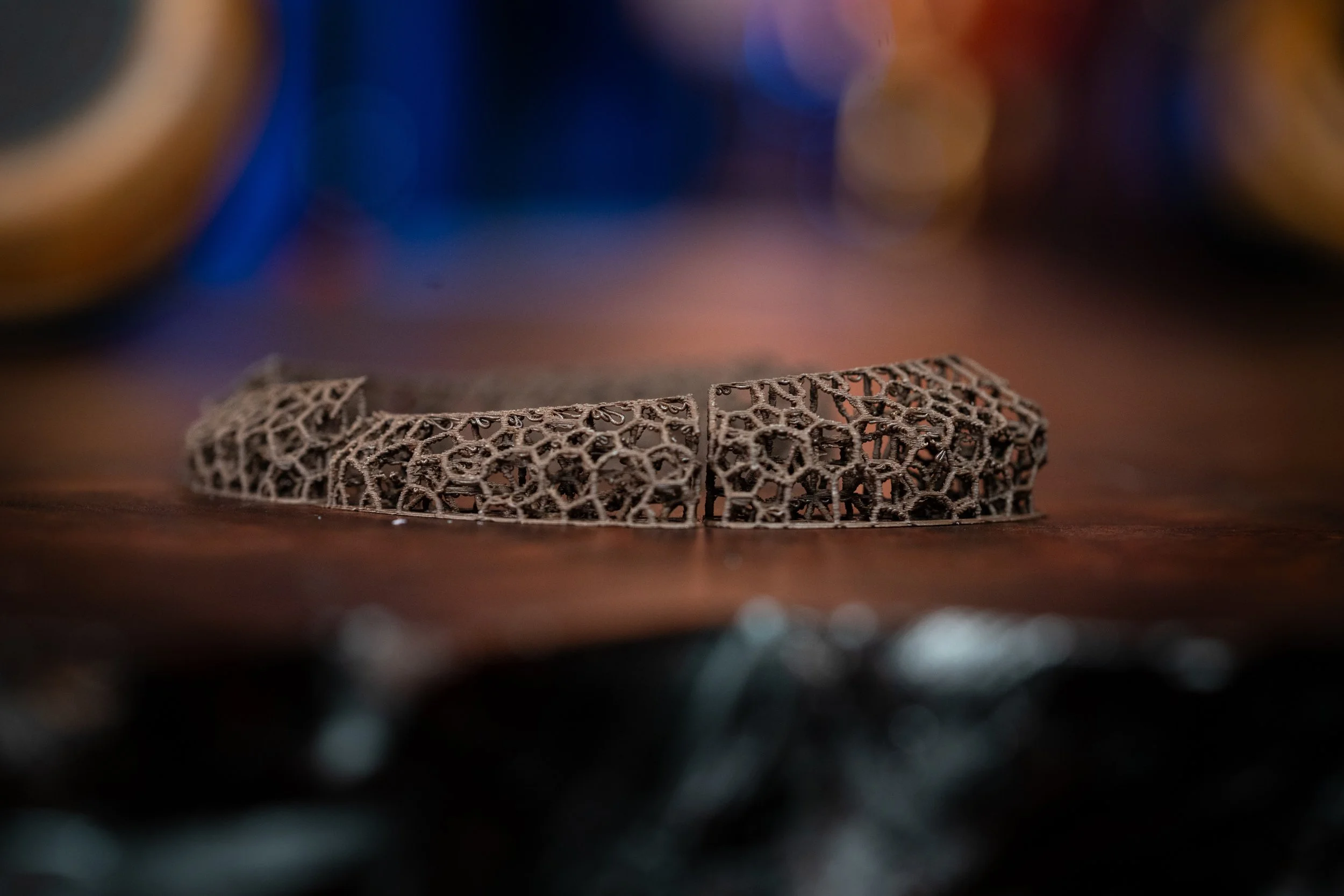

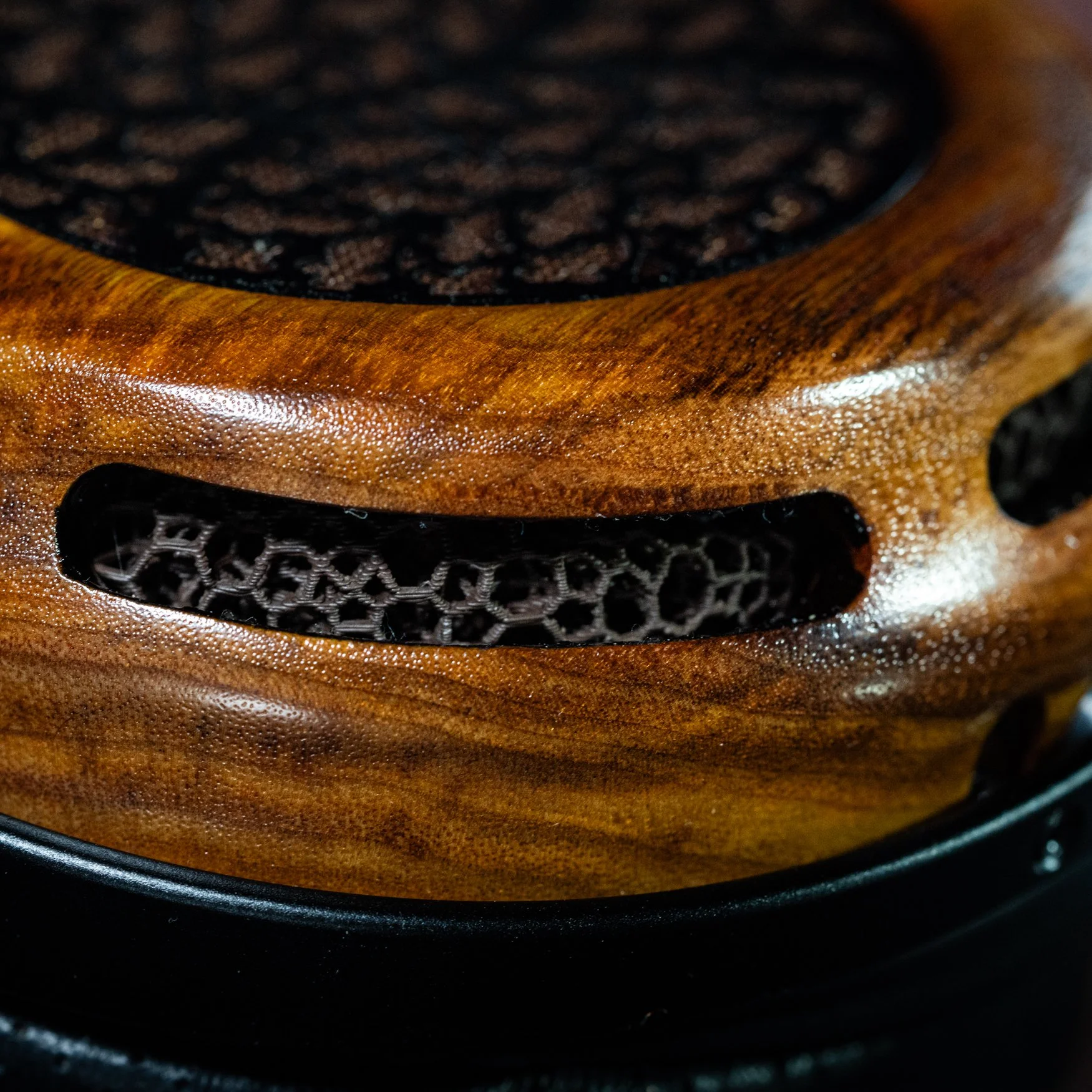

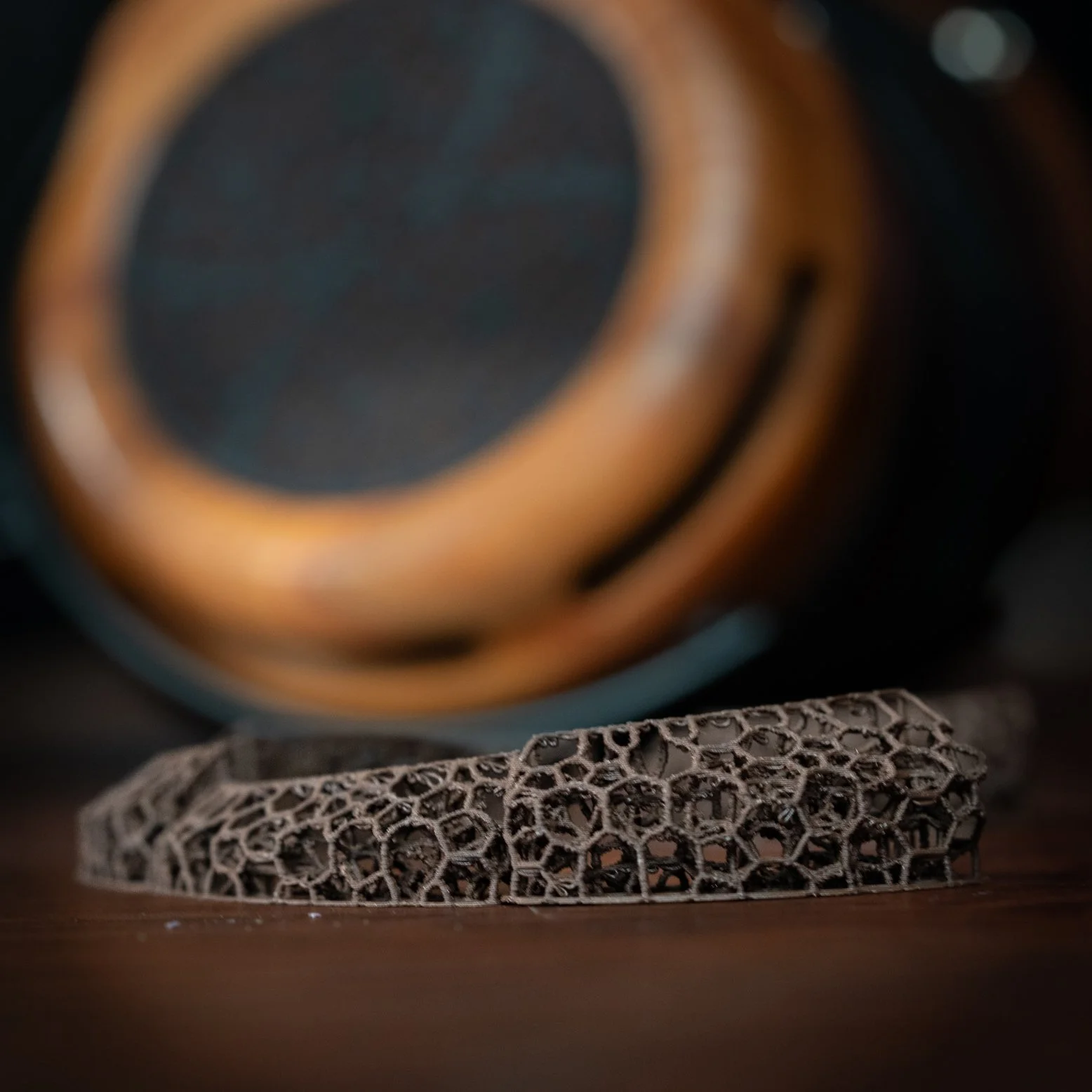

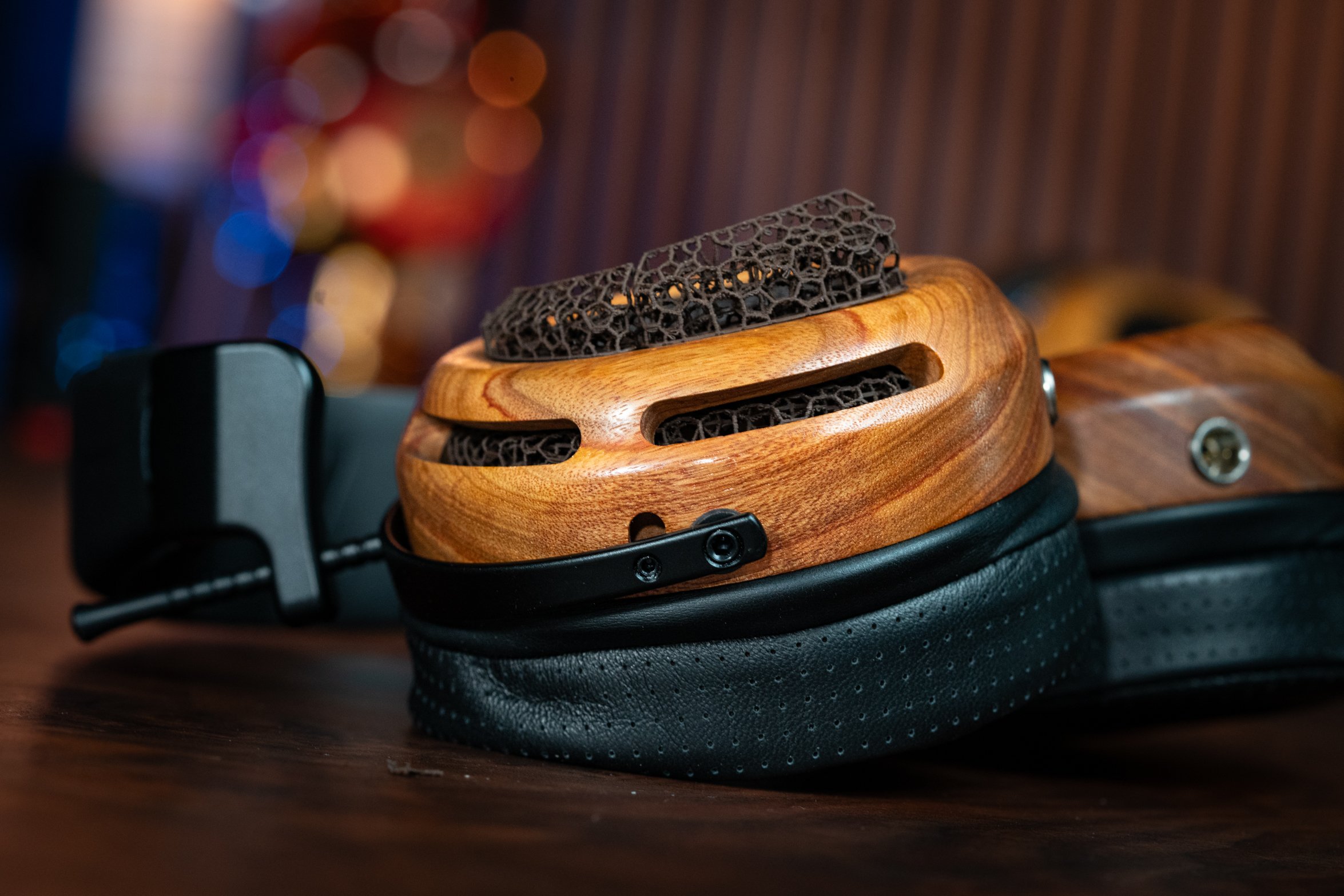

ZAM (ZMF Acoustic Matrix): The new lattice diffusion system that eliminates standing waves and smooths the treble region while preserving dynamics.

SRS (Soundboard Resonator System): The new wood resonator that adds punch, controls the midrange, and brings instrumental resonance to the planar platform.

ZMF Caldera Pad System: The Caldera pads feature an inside-out fluted design that channels airflow from the driver membrane directly to the ear. Combined with semi-vented airflow and an asymmetrical angled geometry, the pad system introduces dimensionality and spatial presentation that complements the planar driver's capabilities.

The suede surface acts as a natural acoustic absorber, gently damping upper-midrange energy and softening treble transients compared to the more reflective lambskin — you'll hear a slightly smoother, more relaxed presentation with a touch less attack which we find nice for long sessions. Suede's increased damping yields a subtly warmer, more laid-back staging character, albeit with a slightly more linear sound.

The thicker pad increases driver-to-ear distance, which widens the perceived soundstage and shifts upper-frequency energy — you'll notice a slight boost in presence and a slightly more U shaped response that will be exciting to many, while bass weight and sub-bass extension stay very close the added air volume in the deeper chamber provides marginally longer acoustic decay and a slightly more spacious presentation.

This swap represents the most dramatic shift of the three: the Auteur Solid Suede's non-perforated construction creates a tighter acoustic seal that reshapes the sound a bit — the result is a more intimate, frontal, and damped presentation with additional presence and slightly reduced treble air and sparkle.   It's not boring, though, as a slightly increased energy will give you that Tessidera punch you might have been looking for.
